HGT-182N-72 Series 590-605W N-Type TOPCon Bifacial Module
HGT-182N-72-590~605W

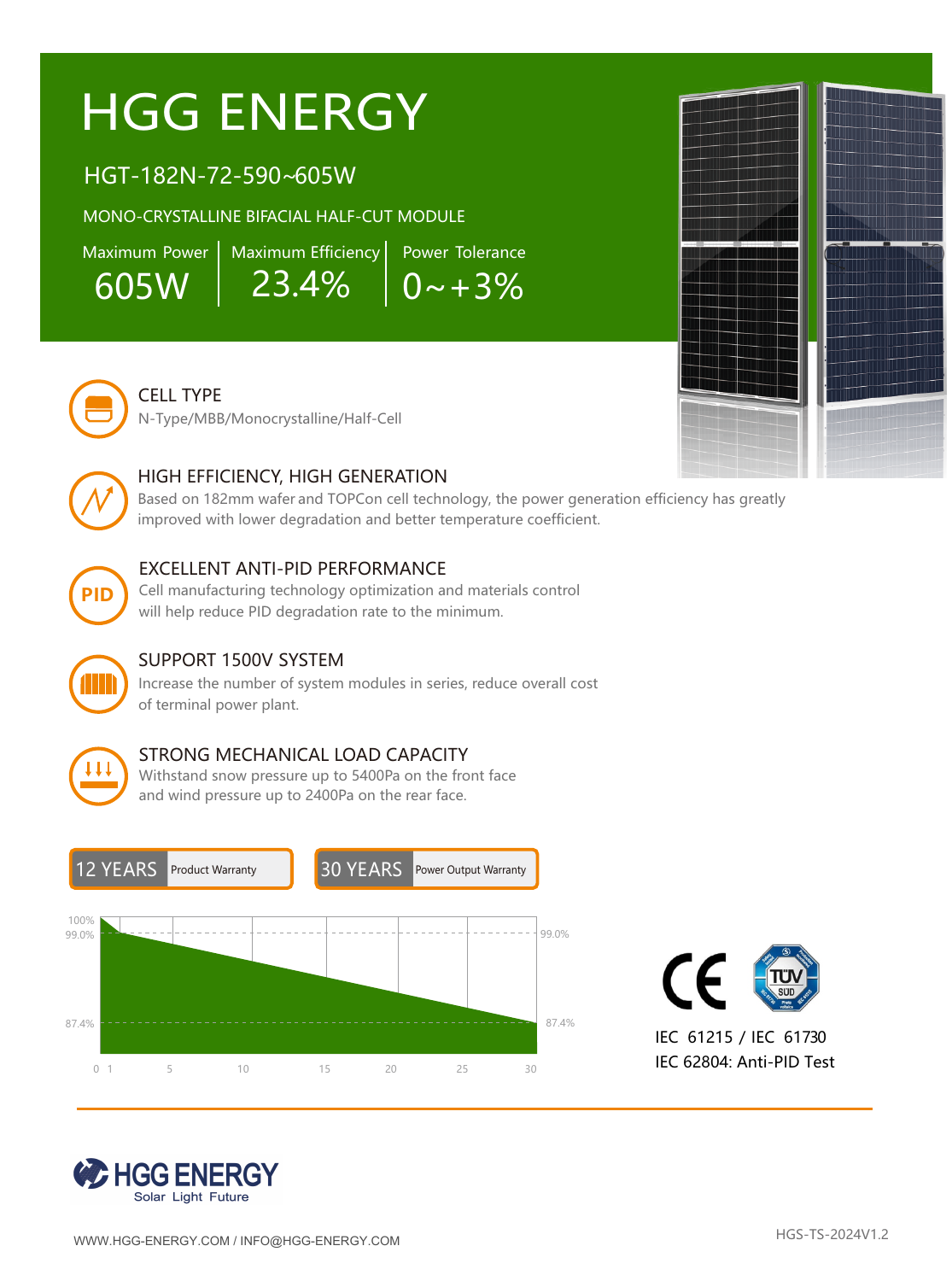

Features
- 590-605W power output; up to 23.4% module efficiency
- 182mm wafer with N-Type TOPCon, MBB and half-cell technology
- Bifacial monocrystalline module with 144 half-cells
- Excellent anti-PID performance; 1500V system support
- 5400Pa front load and 2400Pa rear load
- 12-year product warranty; 30-year power output warranty
Share Our Products With Your Network
Description
HGT-182N-72-590~605W
N-Type monocrystalline bifacial half-cut module based on 182mm wafers and TOPCon cell technology, with lower degradation and a better temperature coefficient.
Key Specifications
| Power Range | 590-605W |
|---|---|
| Maximum Efficiency | 23.4% |
| Power Tolerance | 0 to +3% |
| Cell Type | N-Type / MBB / Monocrystalline / Half-Cell |
| Number of Cells | 144 |
| Dimensions | 2278 × 1134 × 30mm |
| Weight | 32.5 ± 1.0kg |
| Maximum System Voltage | 1500V |
| Operating Temperature | -40°C to +85°C |
| Maximum Series Fuse Rating | 30A |
| Junction Box | IP68 |
| Front / Rear Static Load | 5400Pa / 2400Pa |
| Product Warranty | 12 years |
| Power Output Warranty | 30 years |

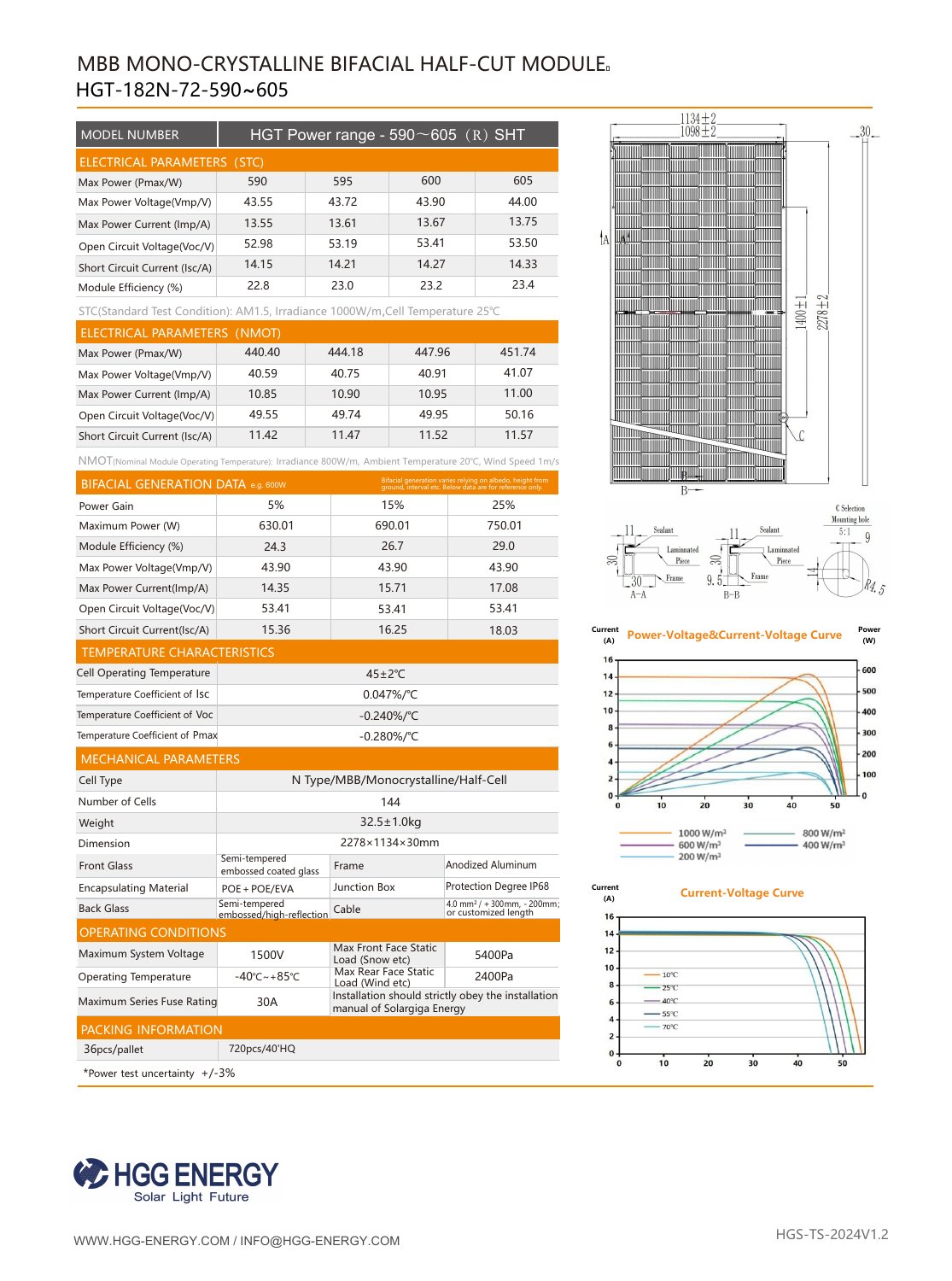

Electrical Parameters (STC)
| Parameter | 590W | 595W | 600W | 605W |
|---|---|---|---|---|
| Maximum Power (W) | 590 | 595 | 600 | 605 |
| Maximum Power Voltage (V) | 43.55 | 43.72 | 43.90 | 44.00 |
| Maximum Power Current (A) | 13.55 | 13.61 | 13.67 | 13.75 |
| Open Circuit Voltage (V) | 52.98 | 53.19 | 53.41 | 53.50 |
| Short Circuit Current (A) | 14.15 | 14.21 | 14.27 | 14.33 |
| Module Efficiency (%) | 22.8 | 23.0 | 23.2 | 23.4 |
STC: AM1.5, irradiance 1000W/m², cell temperature 25°C. Power test uncertainty: ±3%.
Full Datasheet
